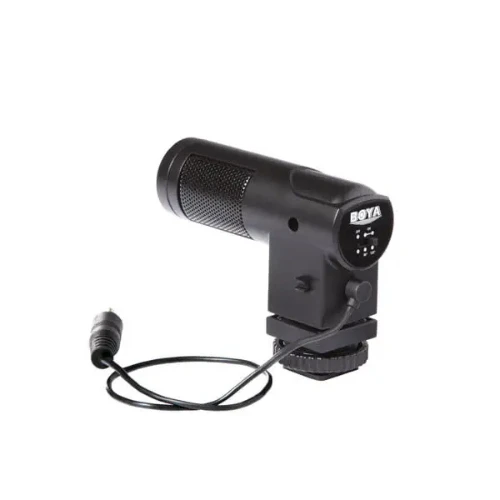

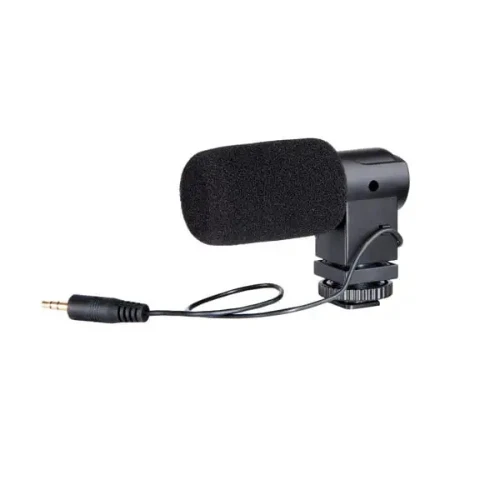

Boya Compact Stereo Microphone BY-V01

The Boya BY-V01 is a compact stereo X/Y condenser microphone designed to deliver high-quality audio for DSLR cameras, camcorders, and smartphones. Its lightweight and portable design makes it an ideal choice for vloggers, content creators, and videographers seeking to improve their audio recording capabilities without breaking the bank.

Key Features:

• Stereo X/Y Condenser Microphone: Captures clear and natural stereo sound with a selectable pickup pattern of 90° or 120°, allowing for versatile recording options.

• Wide Frequency Response: Offers a frequency range of 35Hz to 20kHz, ensuring full-range audio capture.

• High Signal-to-Noise Ratio: With a signal-to-noise ratio of 74dB, it minimizes background noise for cleaner recordings.

• Compact and Lightweight: Weighing only 55g, it adds minimal bulk to your setup, making it easy to carry and use on the go.

• Versatile Compatibility: Equipped with a 3.5mm TRS connector, it's compatible with most DSLR cameras, camcorders, and smartphones.

• Battery-Powered: Powered by a single LR44 battery (included), ensuring reliable performance without the need for external power sources.

• Included Accessories: Comes with a foam windscreen to reduce wind noise and a furry windshield for outdoor use, enhancing audio clarity in various environments.

Specifications:

• Microphone Type: Condenser, X/Y Stereo

  Frequency Response: 35Hz – 20kHzSignal-to-Noise Ratio: 74dB

• Sensitivity: -40dB ± 1dB / 0dB=1V/Pa, 1kHz

• Power Supply: 1 x LR44 Battery (included)Connector: 3.5mm TRS

• Weight: 55g

• Dimensions: 73mm x 26mm x 57mm

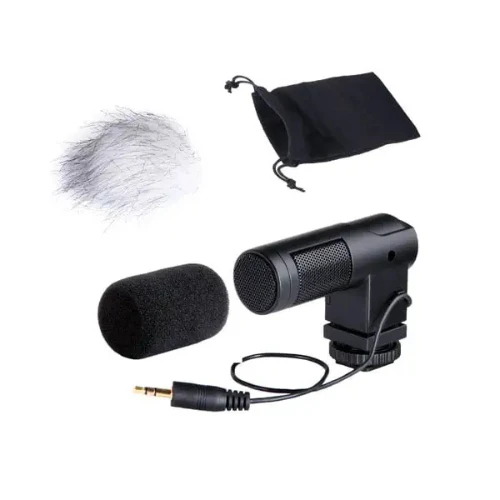

What's in the Box:

• 1 x Boya BY-V01 Microphone

• 1 x Foam Windscreen

• 1 x Furry Windscreen

• 1 x LR44 Battery

• 1 x User Manual

Usage Instructions:

1. Attach the Microphone: Mount the Boya BY-V01 onto your camera's hot shoe or tripod using the integrated cold shoe mount.

2. Connect the Mic: Plug the 3.5mm TRS connector into your camera, camcorder, or smartphone's microphone input.

3. Select Pickup Pattern: Use the switch to choose between 90° or 120° pickup patterns based on your recording needs.

4. Power On: Insert the included LR44 battery into the microphone to power it on.

5. Start Recording: Begin your recording session, ensuring the microphone is positioned appropriately for optimal audio capture.

The Boya BY-V01 is an excellent choice for those looking to enhance their audio recordings with a budget-friendly, compact, and easy-to-use microphone.
