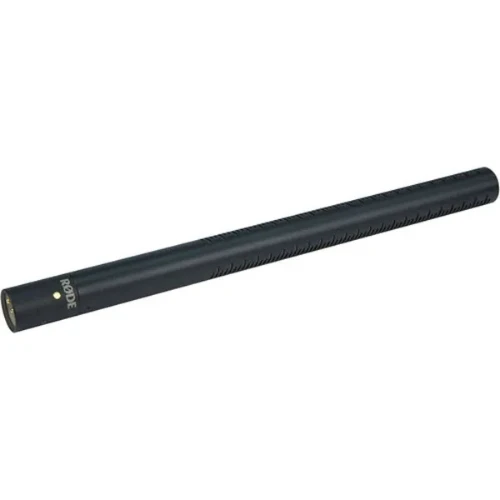

The RØDE NTG3B is a professional-grade shotgun microphone designed to deliver exceptional audio quality in various recording scenarios, including film, television, and outdoor environments. Its RF-bias technology ensures superior resistance to moisture and condensation, making it a reliable choice for challenging conditions.
Key Features:
-
RF-Bias Technology: Provides enhanced resistance to moisture and condensation, ensuring reliable performance in humid or adverse conditions.
-
Super cardioid Polar Pattern: Offers focused on-axis audio capture with excellent off-axis rejection, ideal for isolating sound sources in noisy environments.
-
Low Self-Noise: With a self-noise level of just 13 DBA, the NTG3B captures clean and clear audio, minimizing background hiss.
-
High Sensitivity: Delivers strong output levels without requiring excessive gain, preserving audio quality.
-
Phantom Powered: Operates on 48V phantom power, compatible with a wide range of professional audio equipment.
-
Durable Construction: Features a solid brass body with a black anti-glare finish, combining durability with a sleek appearance.
-
Lightweight Design: Weighing only 163g, it's suitable for on-camera use and boom pole mounting.
Specifications:
-
Acoustic Principle: Line Gradient
-
Polar Pattern: Super cardioid
-
Frequency Range: 40Hz – 20kHz
-
Output Impedance: 25Ω
-
Maximum SPL: 130dB SPL (@ 1kHz, 1% THD into 1KΩ load)
-
Sensitivity: -30 DBV/Pa at 1kHz
-
Dynamic Range: 117 dB
-
Signal-to-Noise Ratio: 81 dB A-weighted
-
Power Requirement: 48V phantom power
-
Output Connector: 3-pin XLR balanced
-
Dimensions: ø: 19mm x L: 255mm
-
Weight: 163g

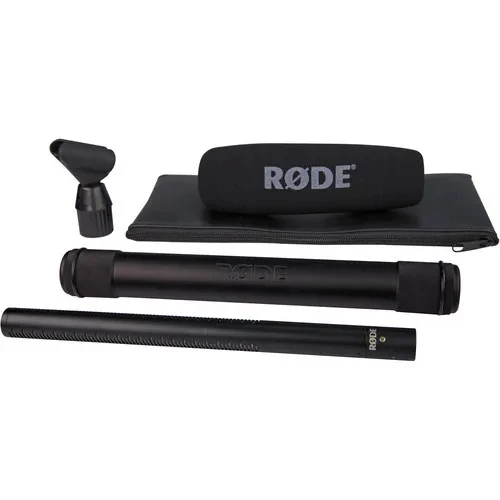

What's in the Box:
-
RØDE NTG3B Shotgun Microphone
-
RM5 Stand Mount
-
WSNTG3 Foam Windscreen
-
Aluminum Storage Cylinder
-
ZP2 Padded Zip Pouch
-
Limited 1-Year Warranty (extendable to 10 years upon registration)
Usage Instructions:
-
Powering the Microphone: Connect the NTG3B to a device that provides 48V phantom power via an XLR cable.
-
Mounting: Use the included RM5 stand mount to attach the microphone to a boom pole or stand.
-
Positioning: Aim the microphone towards the sound source, utilizing its super cardioid pattern for focused audio capture.
-
Recording: Begin recording, ensuring optimal audio quality in various environments.
The RØDE NTG3B is an excellent choice for professionals seeking a reliable, high-quality shotgun microphone capable of performing in diverse and challenging recording situations.
