The RØDE NTG4+ is a professional-grade shotgun microphone designed for a wide range of applications, including filmmaking, broadcasting, and field recording. Building upon the success of its predecessors, the NTG1 and NTG2, the NTG4+ introduces digital switching for enhanced control and flexibility in various recording environments.
Key Features:
-
Super cardioid Polar Pattern: Offers highly directional audio capture, focusing on the sound source while minimizing background noise.
-
Digital Switching: Provides quick access to three essential settings: high-pass filter (75Hz), -10dB pad, and high-frequency boost, allowing for on-the-fly adjustments.
-

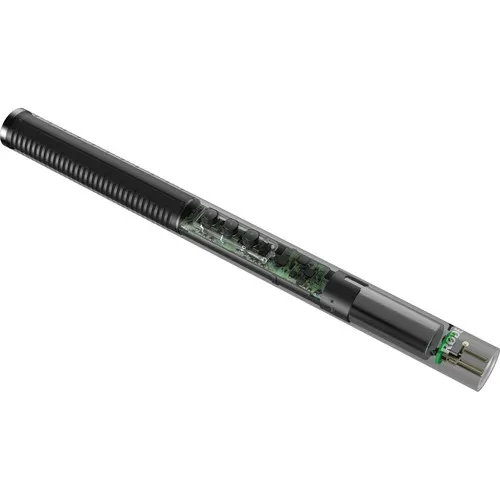

Built-In Rechargeable Battery: Features an internal lithium-ion battery that provides up to 150 hours of operation, rechargeable via micro-USB in approximately two hours.
-
Low Noise Circuitry: Ensures clean and clear audio capture with minimal self-noise.
-
Rugged Metal Construction: Built to withstand the rigors of field recording and daily use.
-
Phantom Power Operation: Compatible with 12V, 24V, or 48V phantom power sources, making it versatile for various recording setups.
Specifications:
-
Acoustic Principle: Line Gradient
-
Polar Pattern: Super cardioid
-
Frequency Range: 20Hz – 20kHz (selectable high-pass filter at 75Hz)
-
Sensitivity: -32dB re 1V/Pa (25mV @ 94 dB SPL) ±2dB @ 1kHz
-
Output Impedance: 200Ω
-
Equivalent Noise Level: 16dBA SPL (per IEC651)
Dynamic Range: 119dB (per IEC651)
-
Signal-to-Noise Ratio: 78dB SPL (per IEC651)
-
Maximum SPL: 135dB SPL (@ 1kHz, 1% THD into 1KΩ load)
-
Power Requirements: Built-in rechargeable lithium battery or 12V, 24V, or 48V phantom power
-
Battery Life: Up to 150 hours
-

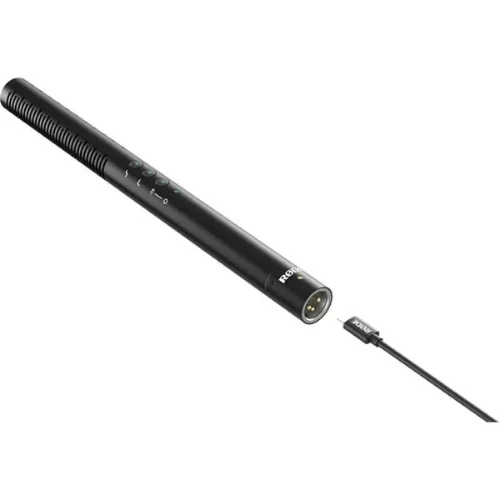

Charging Time: Approximately 2 hours via micro-USB
-
Output Connector: 3-pin XLR, balanced output
-
Dimensions: ø: 22mm x L: 278mm
-
Weight: 176g
What's in the Box:
Usage Instructions:
-
Powering the Microphone: Connect the NTG4+ to a device that provides 12V, 24V, or 48V phantom power via an XLR cable, or use the built-in rechargeable battery for up to 150 hours of operation.
-

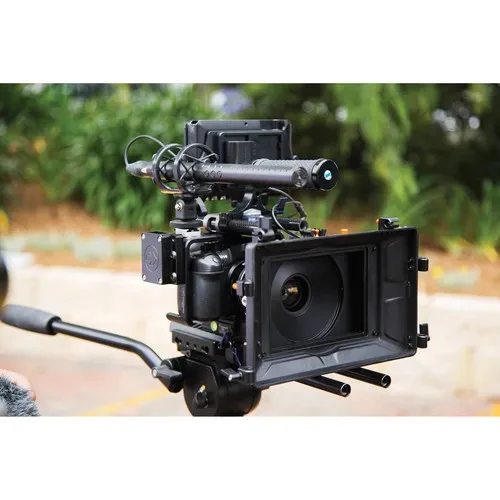

Mounting: Use the included RM5 stand mount to attach the microphone to a boom pole, stand, or camera.
-
Digital Controls: Utilize the digital switches on the microphone body to engage the high-pass filter, -10dB pad, or high-frequency boost as needed for your recording environment.
-
Recording: Position the microphone towards the sound source, ensuring optimal audio capture, and begin recording.
The RØDE NTG4+ is an excellent choice for professionals seeking a reliable, high-quality shotgun microphone capable of performing in diverse and challenging recording situations.
